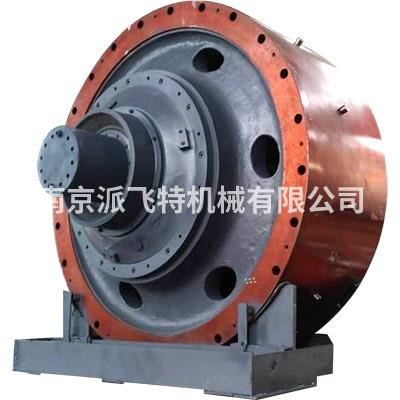

Grinding Roller Assembly
Publishdate：2021-06-07 Views：316
Product Code: 1.233658
Quantity: 3 pcs/set
Life of usage：4-7 years
Combination ：shaft, hub, air seal, bearings, wear
segment, cover.
Function: Convey the pressure and grinding materials
Installation requirement:
1, Combined grinding roller assembly and the
center yoke with bolts M80. The pressure of torque should be 2167KN.
2, Different hydraulic nut tools should be different pressure, please
confirm before installation.
3, Stay bolts to be retightened to the correct torque level after 8hours
and again 24hours and again 72hours until the torque remains constant.
4, Please leave the gap of bearings and seals at 0.5-1.0mm.
Replacement required standard:
1, The bearings cannot run properly
2, The hub damaged when cannot afford to mount the wear segment.
3, To prevent the system of grinding from damage, which should be always
keep grease and lubrication running well
4, Check the air sealings on agenda and replace if necessary.
